- Tech Tip #17 -
Installing an Electronic speedo in a Mog

Click here to see the large picture

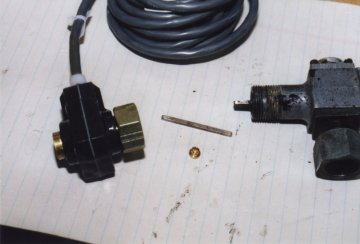

What you get, and what you got - sensor on the left, sensor pin with collar removed, and Unimog speedometer cable adaptor on the right.

Click here to see the large picture

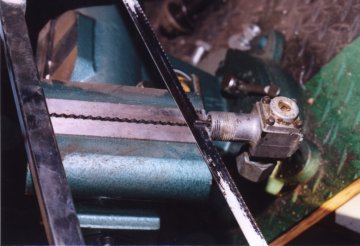

Make a cut down the center of the adaptor..

Click here to see the large picture

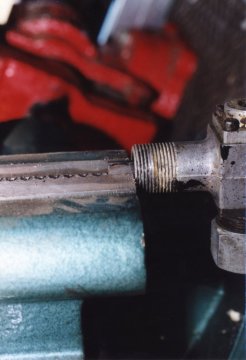

..large enough to accept the pin.

Click here to see the large picture
Here is the pin in place.

Click here to see the large picture

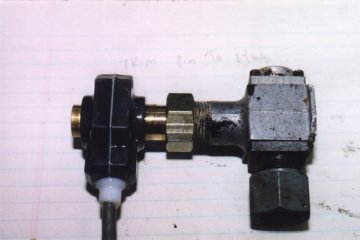

Trim the pin to 24mm and connect the two pieces together.

-
